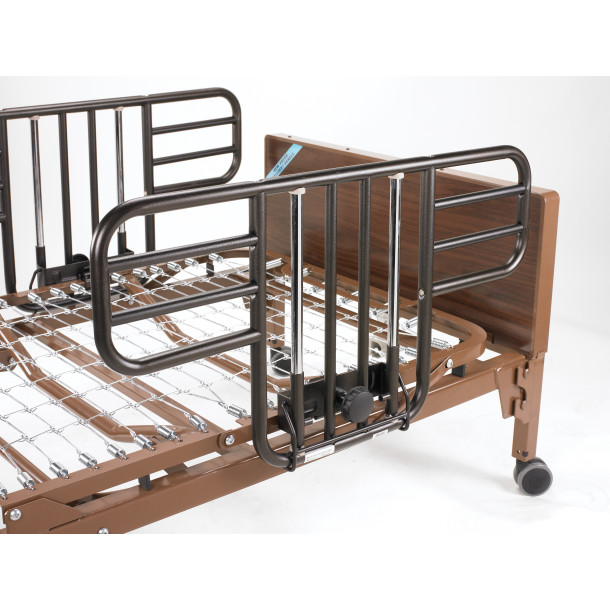

Delta® Ultra-Light 1000 Full-Electric Low Bed
Description
Description
Additional Information
- The Delta 1000 is truly universal because the bed frame can be used with Drive's and most other manufacturers' bed ends, old and new.
- The transition box mounted on the foot section is key to interchangeability (Figure A).
- The transition box allows you to change the rotation of the high/low shaft.
- Headboard is taller than footboard to better fit home decor (Figure B).
- The wood grain panels are break and scratch resistant.
- Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations (Figure C).

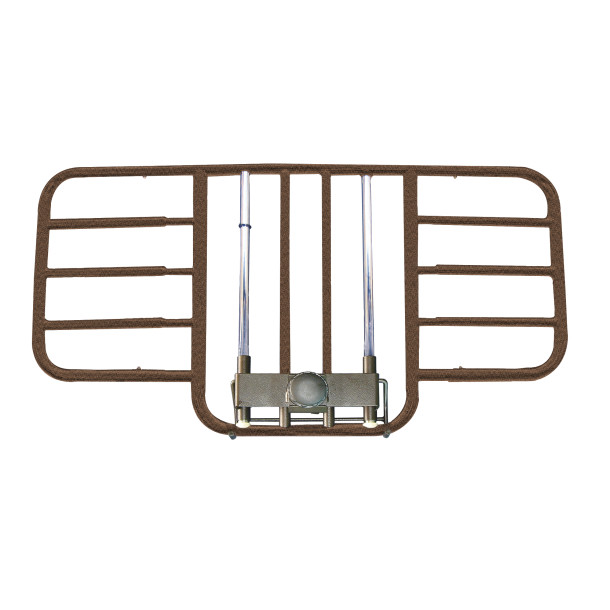

- Labels and color-coded springs assure accurate installation of side rails for patient safety (Figure D).
- Unique motor is completely self-contained to reduce weight and noise.
- 9 ½" to 23 ½" deck height.
- Easy to set up.
- Top mounted Hi/Lo crank accessibility.
- Height-adjustable motor comes pre-installed on the foot section.
- Caster easily moves from standard to low bed position.
- The motor assembly can be installed and removed with patient in bed.
- Bed, side rails, and mattress safety-tested by SGS, a nationally recognized testing facility.
- Satisfies all applicable FDA entrapment guidelines.
- The motor is UL approved.
- In the event of a power failure, a 9-volt battery located in the hand control can lower the head and foot sections nine times.
- New and improved hand pendant has large, easy-to-use controls (Figure E).
- Bed ships in two cartons.
- Hand crank located on the top of the footboard prevents bending for the caregiver when in the low position (Figure F).
- Channel frame construction provides superior strength and reduced weight.
- Zinc-coated spring deck.
- Extension kit available (model #15030EXTKIT) extends length from 80" to 84".
- Patent Pending.
- Weight Capacity: 450 lbs.
| Product SKU | N/A |
|---|
